- ESP32-S3 Microcontroller W--F-i Development Board with pre-soldered header. Supports Development Environments Such As ESP-IDF, Arduino, MicroPython,Etc. Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
- MHz. Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB Flash memory. Integrated 2.4GHz W--F-i and Blue--too-th LE dual-mode wire-less communication, with superior RF performance. Powerful AI Computing Capability & Reliable Security Features.
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface. Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A.
- Type-C connector, easier to use. 27 × multi-function GPIO pins. Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly Castellated module allows soldering directly to carrier boards.
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios. Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development.
Overview

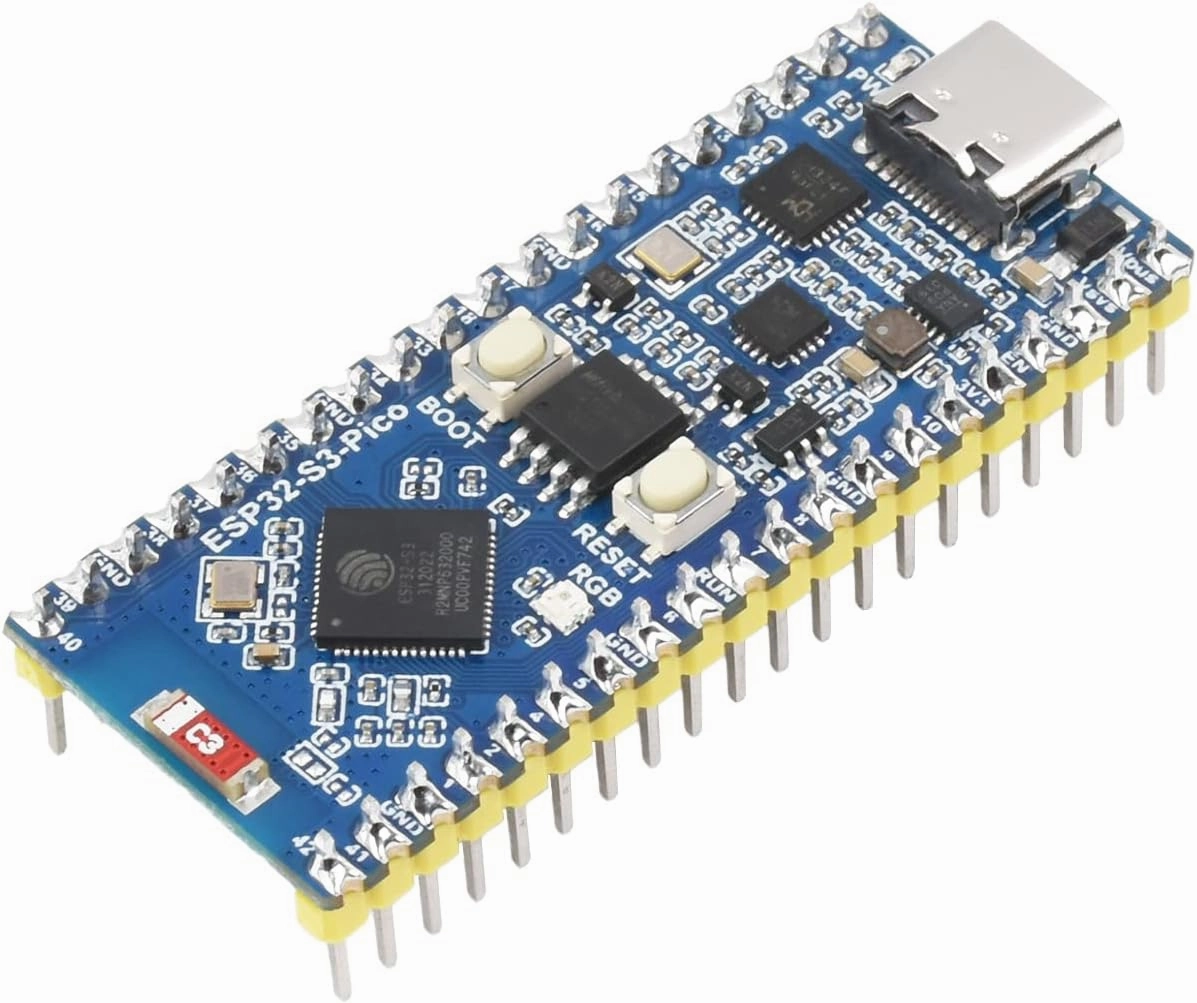

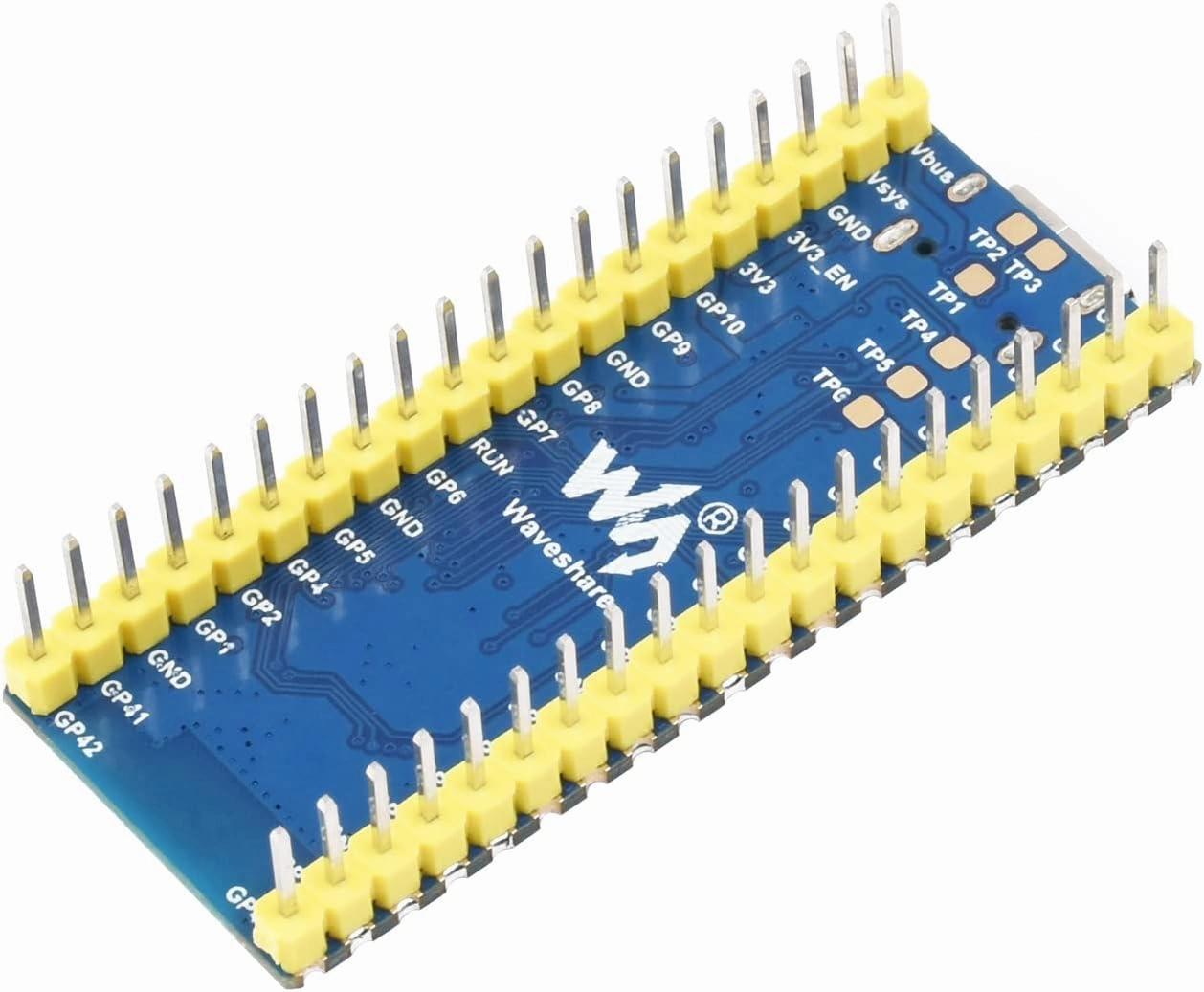

The ESP32-S3-Pico with pre-soldered header adopts ESP32-S3R2 as the main chip, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, with built-in 512 KB SRAM (TCM) and 2MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product. You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.
Key features:
Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB Flash memory
Integrated 2.4GHz W--Fi and Blue--too-th LE dual-mode wire-less communication, with superior RF performance.
Type-C connector, easier to use
Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
27 × multi-function GPIO pins
Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly
Castellated module allows soldering directly to carrier boards
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development.
Online Development Resources /User Manuall://bit.ly/3lcDWpv
Package Content
ESP32-S3-Pico with pre-soldered header x1
