- Versatile Inputs: Mixes microphones, telephone paging, and auxiliary sources for flexible audio control
- Independent Volume Controls: Each input features its own volume adjustment for precise level management
- High Power Output: Delivers 35 watts RMS for clear, reliable sound in small to mid-sized venues
- Multiple Speaker Outputs: Supports 4-ohm, 8-ohm, 16-ohm, 25V, and 70V speaker systems for broad installation compatibility
- Tone Control Flexibility: Adjustable bass and treble controls allow fine-tuning of audio performance
- Paging Integration: Telephone input with voice-activated muting for seamless paging applications
- Recording and Expansion Ready: Output jacks for tape recorders, booster amplifiers, or 600-ohm telephone lines

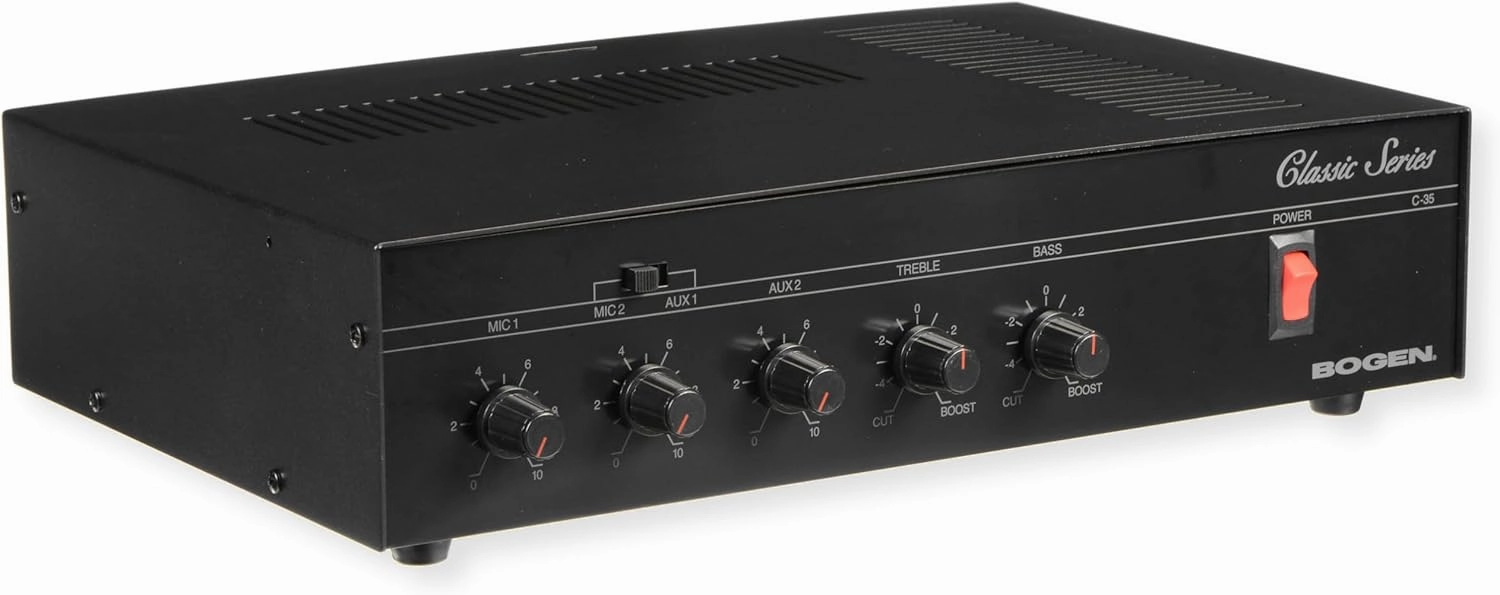

Bogen C35 Classic Series 35W Public Address Mixer/Amplifier, 4 Input Paging System for Commercial Audio, Treble and Bass Controls, Thermal and Electronic Protection
The Bogen C35 Classic Series 35W Public Address Mixer Amplifier is engineered for commercial and institutional environments needing dependable audio distribution. With four independent inputs, robust 35W output, and flexible speaker compatibility, it is ideal for paging, background music, and multi-source mixing in offices, schools, retail, and houses of worship. User-friendly controls, advanced protection features, and rack-mount capability make this amplifier a trusted solution for professional audio needs.
Key Features:
- 35W RMS output power
- Four inputs: MIC, AUX, TEL, and selectable MIC/AUX
- Independent volume controls for each input
- Bass and treble tone controls
- Supports 4, 8, 16 ohm, 25V, and 70V speaker outputs
- Telephone input with voice-activated (VOX) muting
- AUX muting via external contact closure
- Output jacks for recording or booster amplifiers
- Thermal protection and electronic shutdown
Specifications
- Power Output (RMS): 35
- Hum and Noise: MIC: 55 dB below rated output; AUX: 70 dB below rated output; TEL: 70 dB below rated output
- Output Connections: Screw terminal strip, TAPE/BOOSTER jack; WMT1A jack (requires accessory transformer)
- Input Connections: Screw terminals for MIC and TEL, two AUX Hi-Z jacks
- Controls: MIC1, MIC2/AUX (switch selected), AUX 2, BASS, TREBLE, TEL, VOX
- Tone Control: Treble, /-11 dB at 10 kHz; Bass /-11 dB at 100 Hz
- Power Requirements: 120V AC, 60 Hz; 85W
- Overall Dimensions (WxHxD): 14.5 x 3.75 x 11 inches
- Weight: 15 pounds
